Super full magnetic suction track light introduction guide

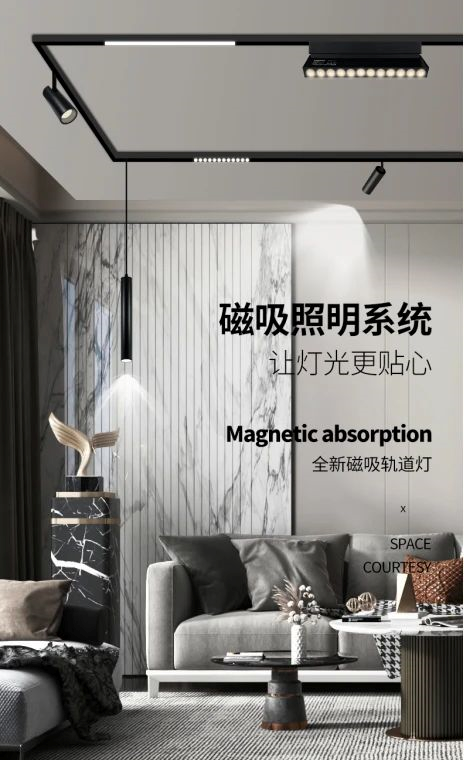

Magnetic suction track lamp is a lighting system with free module combination according to demand. The main components revolve around three parts: lamp (including light source), track and power box (transformer). Therefore, judge a good magnetic suction track lamp should also be discussed by these three accessories.

Lamps and lanterns:

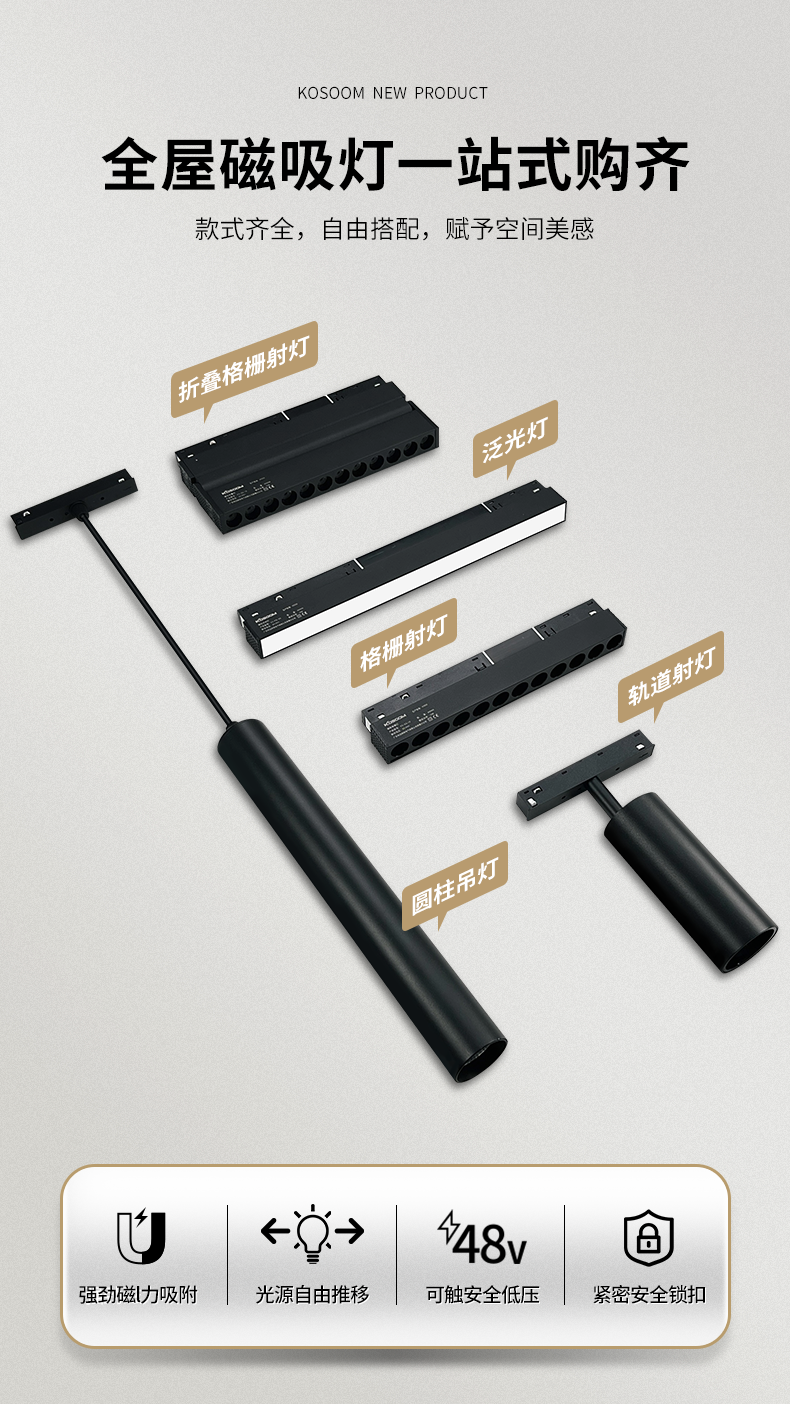

The first is the lamp. Of course, the most outstanding magnetic suction track lamp must be the lamp that can be freely matched, so the types of lamp need to be complete, can meet a variety of electricity needs, and can highlight the sense of hierarchy of space. Generally there are floodlights, spotlights, grille lights, folding grille lights, meal chandeliers to choose from.

1. Health - anti-glare, no stroboscopic, high display

Home lighting is the most important anti-glare, soft light divergence, no stroboscopic, to create a sense of comfort. If you choose the directional lighting of spotlights, then the spotlights Angle needs special calculation and adjustment, as far as possible to avoid direct eyes, and control the reflection of harsh lights, can more highlight the atmosphere of the space, create a sense of shading.

For the same object, the color displayed under the irradiation of photometric source is more consistent with the color displayed under the irradiation of standard light source. The larger Ra is, the better the color rendering performance is, whereas the worse the color rendering performance is. So lighting lamps want bright light source and eye protection, high color rendering index is indispensable. Low color rendering index, people do not distinguish colors clearly, long-term in such a light environment, easy to lead to the problem of weak color. And high display refers to a strong ability to restore color, good light source environment, can better distinguish color, visual effect is clearer, effective protection of vision health.

Different lamps need to be selected according to the actual needs. For example, if the background wall needs to highlight the three-dimensional sense of relief, or hang pictures and other surface decorative effects, the spot lights with beam Angle of 36° or above can be selected for projection, to highlight the aesthetic feeling and guarantee the front. If it is to highlight the light and shadow of ornaments or carved wall objects, it is recommended to use spotlights with beam Angle below 24° to effectively ensure the three-dimensional effect of objects.

3. Affordable - high light efficiency, high efficiency, constant current

Luminous efficiency is the ratio of luminous flux emitted by a light source to the power consumed, which is called luminous efficiency. Different light sources emit the same luminous flux, and the less power they consume, the more efficient they are. The higher the luminous efficiency value, the stronger the ability of lighting equipment to convert electric energy into light energy, that is, the stronger the energy-saving performance of the lighting equipment under the condition of providing the same brightness; At the same power, the stronger the illumination of the lighting equipment, that is, the greater the brightness. But remember that brightness is not the brighter the better, too bright will dazzling, the most important is to see the space size of the constant brightness.

The constant current can provide a stable working environment for the lamp, ensure that the LED is in a good working state and power consumption, and the LED lamp emits a stable light. In order to make the lamp stable and long-term work using the driving mode, the voltage varies with the load weight in a certain range, but the output current remains basically unchanged, the most important is to help prolong the life of the lamp, more safe.

Track part:

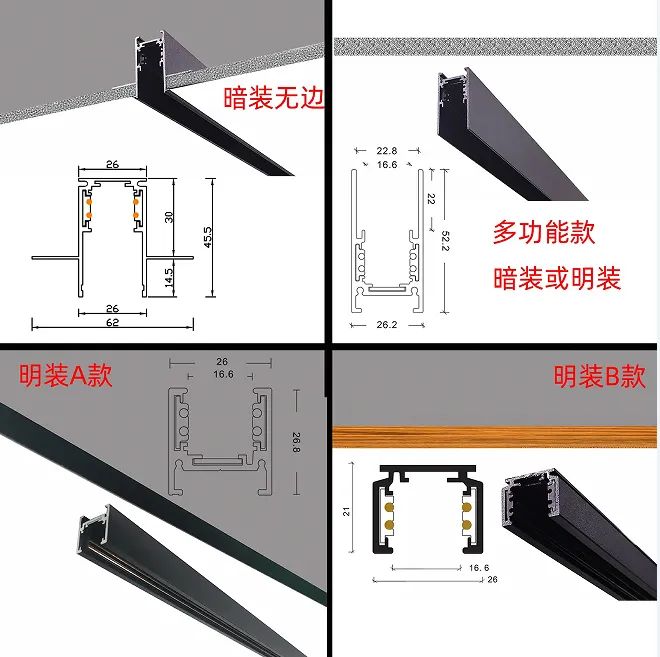

1. Type of track (different installation modes) and universality

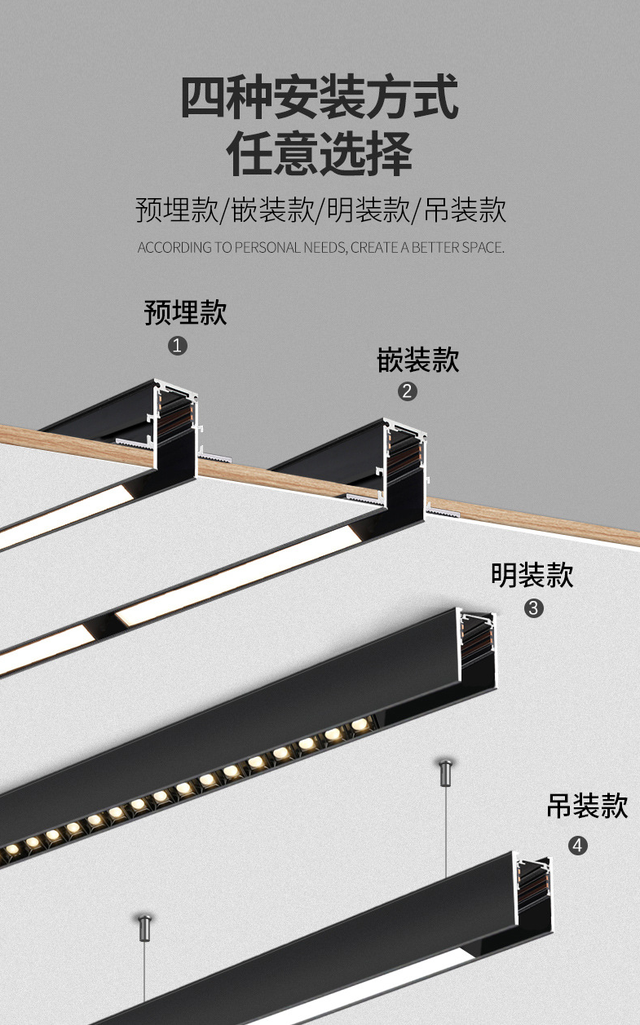

The type of track can be divided into four types: open installation, lifting, embedded and ash grant. Different circumstances can choose different track, there is no ceiling, you can choose Ming or hoisting. On the contrary, you can choose to bury or batch ash. At the same time, the track is the best choice of universal size, convenient later can be free to match different brands of lamps.

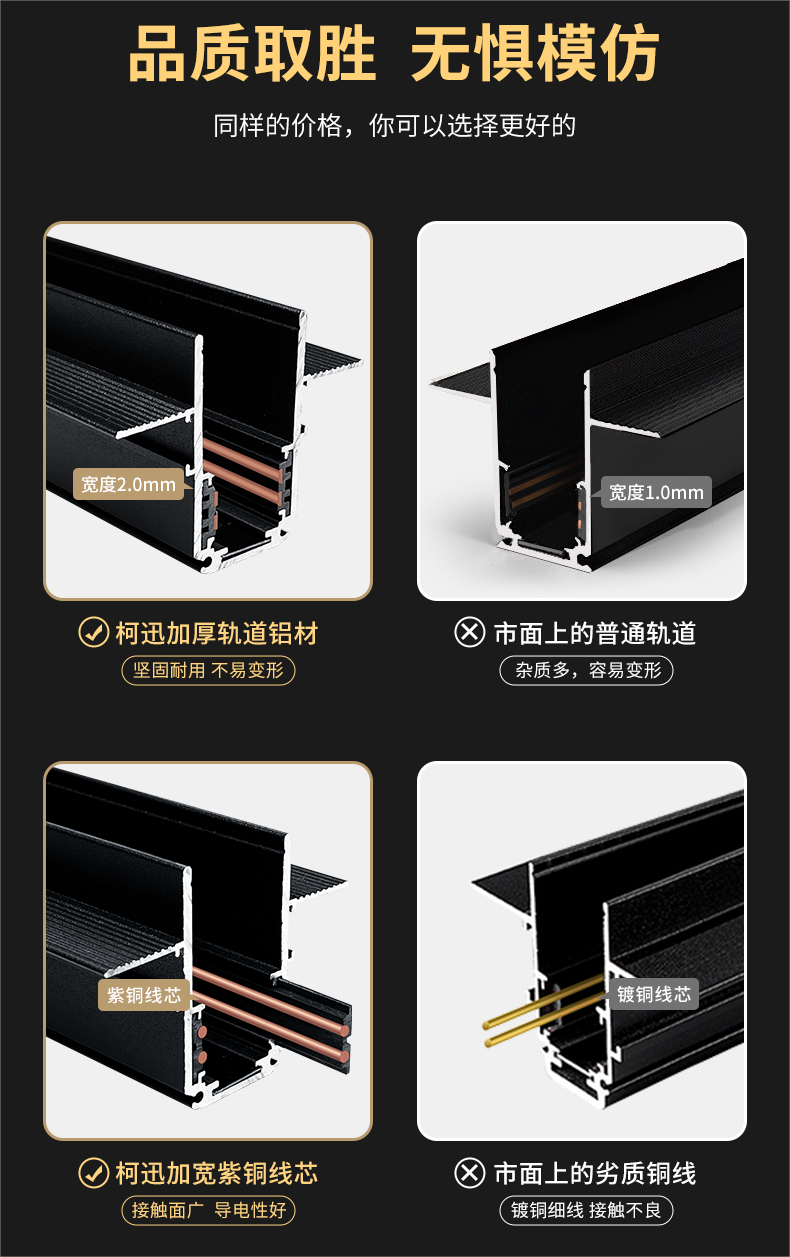

2. Thickness: deformation resistance

Magnetic track should be selected aluminum material, aluminum durable, decoration is not easy to deformation. At the same time, the selection of 2mm thickness of aluminum multiple protection, do not worry too much about the track deformation when decoration leads to poor contact when the lamp is connected.

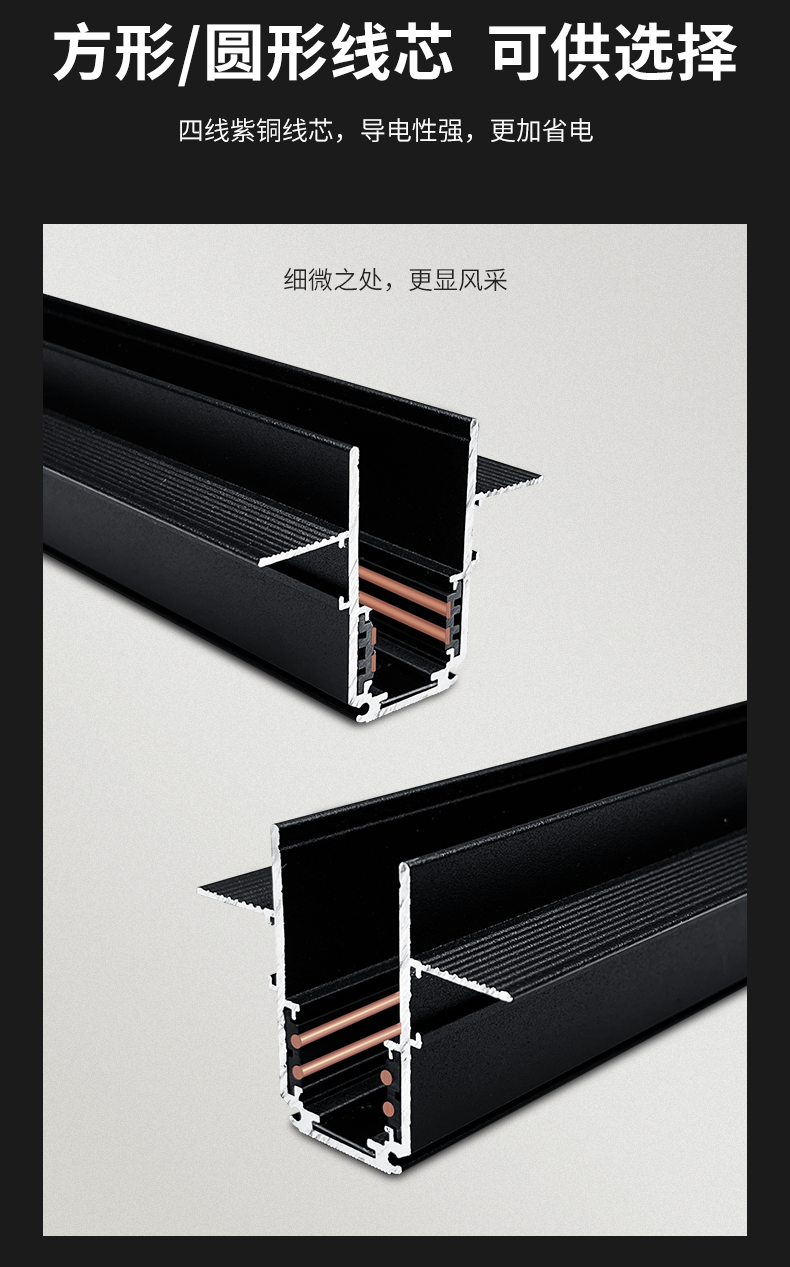

3. Conductive strip: strong conductivity

Internal copper strip should choose copper, copper compared with brass, electricity is more stable, electrical conductivity will be stronger, and more energy saving. At the same time choose 0.6mm flat copper and 2mm round copper is more appropriate, the thicker the thickness, the stronger the electrical conductivity of copper.

4. Strong magnetic force

Speaking of magnetic suction track lamp, many people will worry about a problem, that is, will the magnetic suction lamp fall down, safe? The installation method of magnetic suction track lamp is to use the magnet on the magnetic suction track to absorb the iron sheet on the magnetic suction track lamp. Under normal circumstances, it won't fall off because of the attraction of the magnet. But over time, or under special circumstances, such as high temperature, vibration, electromagnetic induction, etc., the force of a magnet may decline. That is to say, magnets have the possibility of degaussing. You can choose the ferroboron magnet, this kind of magnet experts know that the magnetic loss is very low, almost negligible, extremely long service life.

Power supply part:

1. Safety - safety protection, continuous power supply, low voltage can be touched.

Although the power supply can not shine, but more important is to provide a stable working environment for the lamp, so as to prolong the service life of the lamp, so the constant voltage plays a key role, the output voltage value is fixed, not with the load, input voltage and other external working conditions and change, the lamp needs voltage stable power supply. The best choice of 48v low voltage design, more can protect safety.
